Tipo

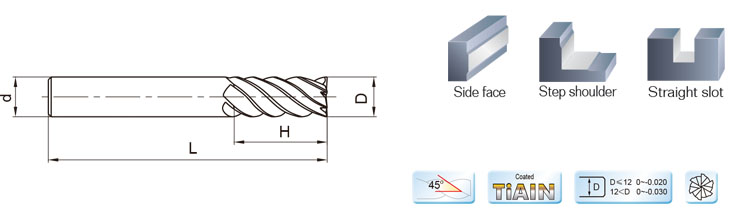

Dimensões (mm)
Teeth Geometry
GRADE
D d H L
FMD-H-HM-6E-D06.00 06.0 6 18.0 60 6 FIGURE 2 RWK44
FMD-H-HM-6E-D08.00 08.0 8 20.0 60 6 FIGURE 2 RWK44
FMD-H-HM-6E-D10.00 10.0 10 30.0 75 6 FIGURE 2 RWK44
FMD-H-HM-6E-D12.00 12.0 12 32.0 75 6 FIGURE 2 RWK44
FMD-H-HM-6E-D16.00 16.0 16 40.0 100 6 FIGURE 2 RWK44
FMD-H-HM-6E-D20.00 20.0 20 45.0 100 6 FIGURE 2 RWK44
FMD-H-HM-6EL-D06.00 06.0 6 24.0 75 6 FIGURE 2 RWK44
FMD-H-HM-6EL-D08.00 08.0 8 32.0 75 6 FIGURE 2 RWK44
FMD-H-HM-6EL-D10.00 10.0 10 40.0 100 6 FIGURE 2 RWK44
FMD-H-HM-6EL-D12.00 12.0 12 45.0 100 6 FIGURE 2 RWK44
FMD-H-HM-6EL-D16.00 16.0 16 64.0 150 6 FIGURE 2 RWK44
FMD-H-HM-6EL-D20.00 20.0 20 75.0 150 6 FIGURE 2 RWK44
