Tipo
Dimensões (mm)
Teeth Geometry
GRADE
D d H L

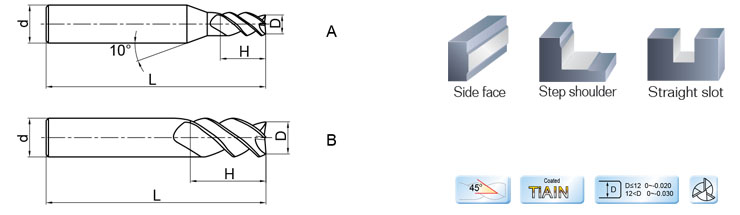

FMD-P-GM-3EL-D03.0T 03.0 6 12.0 75 3 FIGURE 1 RWK40
FMD-P-GM-3EL-D04.0T 04.0 6 15.0 75 3 FIGURE 1 RWK40
FMD-P-GM-3EL-D05.0T 05.0 6 20.0 75 3 FIGURE 1 RWK40
FMD-P-GM-3EL-D06.00 06.0 6 20.0 75 3 FIGURE 2 RWK40
FMD-P-GM-3EL-D08.00 08.0 8 25.0 75 3 FIGURE 2 RWK40
FMD-P-GM-3EL-D10.00 10.0 10 30.0 100 3 FIGURE 2 RWK40
FMD-P-GM-3EL-D12.00 12.0 12 35.0 100 3 FIGURE 2 RWK40
FMD-P-GM-3EL-D14.00 14.0 14 40.0 100 3 FIGURE 2 RWK40
FMD-P-GM-3EL-D16.00 16.0 16 50.0 150 3 FIGURE 2 RWK40
FMD-P-GM-3EL-D20.00 20.0 20 55.0 150 3 FIGURE 2 RWK40
