| Tipo |

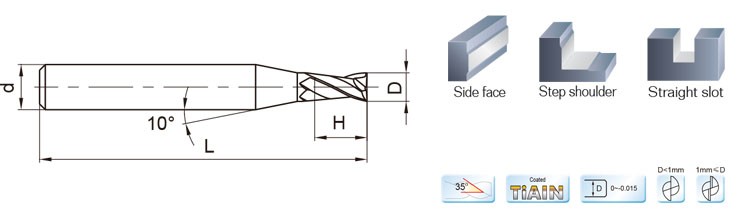

Dimensões (mm)
|
Teeth | Geometry |
GRADE
|
|||
|---|---|---|---|---|---|---|---|
| D | d | H | L | ||||
| FMD-P-GM-2ES-D0.30S | 0.3 | 4 | 0.6 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D0.40S | 0.4 | 4 | 0.8 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D0.50S | 0.5 | 4 | 1.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D0.60S | 0.6 | 4 | 1.2 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D0.70S | 0.7 | 4 | 1.4 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D0.80S | 0.8 | 4 | 1.6 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D0.90S | 0.9 | 4 | 1.8 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.0S | 1.0 | 4 | 2.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.1S | 1.1 | 4 | 2.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.2S | 1.2 | 4 | 2.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.3S | 1.3 | 4 | 2.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.4S | 1.4 | 4 | 3.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.5S | 1.5 | 4 | 3.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.6S | 1.6 | 4 | 3.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.7S | 1.7 | 4 | 3.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.8S | 1.8 | 4 | 4.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D01.9S | 1.9 | 4 | 4.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.0S | 2.0 | 4 | 4.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.1S | 2.1 | 4 | 4.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.2S | 2.2 | 4 | 4.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.3S | 2.3 | 4 | 4.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.4S | 2.4 | 4 | 5.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.5S | 2.5 | 4 | 5.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.6S | 2.6 | 4 | 5.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.7S | 2.7 | 4 | 5.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.8S | 2.8 | 4 | 5.5 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D02.9S | 2.9 | 4 | 6.0 | 50 | 2 | FIGURE 1 | RWK40 |
| FMD-P-GM-2ES-D03.0S | 3.0 | 4 | 6.0 | 50 | 2 | FIGURE 1 | RWK40 |
