Tipo
Dimensões (mm)
Teeth Geometry
GRADE

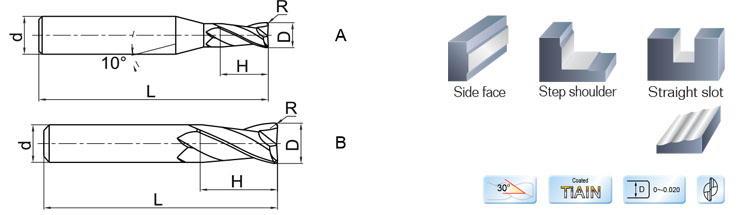

D R d H L
FMD-P-GM-2R-D01.0S R0.2 01.0 0.2 4.0 3 50 2 A RWK40
FMD-P-GM-2R-D01.5S R0.2 01.5 0.2 4.0 4 50 2 A RWK40
FMD-P-GM-2R-D02.0S R0.2 02.0 0.2 4.0 6 50 2 A RWK40
FMD-P-GM-2R-D02.0S R0.5 02.0 0.5 4.0 6 50 2 A RWK40
FMD-P-GM-2R-D02.5S R0.2 02.5 0.2 4.0 8 50 2 A RWK40
FMD-P-GM-2R-D02.5S R0.5 02.5 0.5 4.0 8 50 2 A RWK40
FMD-P-GM-2R-D03.0S R0.2 03.0 0.2 4.0 8 50 2 A RWK40
FMD-P-GM-2R-D03.0S R0.3 03.0 0.3 4.0 8 50 2 A RWK40
FMD-P-GM-2R-D03.0S R0.5 03.0 0.5 4.0 8 50 2 A RWK40
FMD-P-GM-2R-D04.00 R0.2 04.0 0.2 4.0 11 50 2 B RWK40
FMD-P-GM-2R-D04.00 R0.3 04.0 0.3 4.0 11 50 2 B RWK40
FMD-P-GM-2R-D04.00 R0.5 04.0 0.5 4.0 11 50 2 B RWK40
FMD-P-GM-2R-D04.00 R1.0 04.0 1.0 4.0 11 50 2 B RWK40
FMD-P-GM-2R-D05.0T R0.3 05.0 0.3 6.0 13 50 2 A RWK40
FMD-P-GM-2R-D05.0T R0.5 05.0 0.5 6.0 13 50 2 A RWK40
FMD-P-GM-2R-D05.0T R1.0 05.0 1.0 6.0 13 50 2 A RWK40
FMD-P-GM-2R-D06.00 R0.3 06.0 0.3 6.0 16 50 2 B RWK40
FMD-P-GM-2R-D06.00 R0.5 06.0 0.5 6.0 16 50 2 B RWK40
FMD-P-GM-2R-D06.00 R1.0 06.0 1.0 6.0 16 50 2 B RWK40
FMD-P-GM-2R-D08.00 R0.5 08.0 0.5 8.0 20 60 2 B RWK40
FMD-P-GM-2R-D08.00 R1.0 08.0 1.0 8.0 20 60 2 B RWK40
FMD-P-GM-2R-D10.00 R0.5 10.0 0.5 10 25 75 2 B RWK40
FMD-P-GM-2R-D10.00 R1.0 10.0 1.0 10 25 75 2 B RWK40
FMD-P-GM-2R-D10.00 R1.5 10.0 1.5 10 25 75 2 B RWK40
FMD-P-GM-2R-D10.00 R2.0 10.0 2.0 10 25 75 2 B RWK40
FMD-P-GM-2R-D12.00 R0.5 12.0 0.5 12 30 75 2 B RWK40
FMD-P-GM-2R-D12.00 R1.0 12.0 1.0 12 30 75 2 B RWK40
FMD-P-GM-2R-D12.00 R1.5 12.0 1.5 12 30 75 2 B RWK40
FMD-P-GM-2R-D12.00 R2.0 12.0 2.0 12 30 75 2 B RWK40
